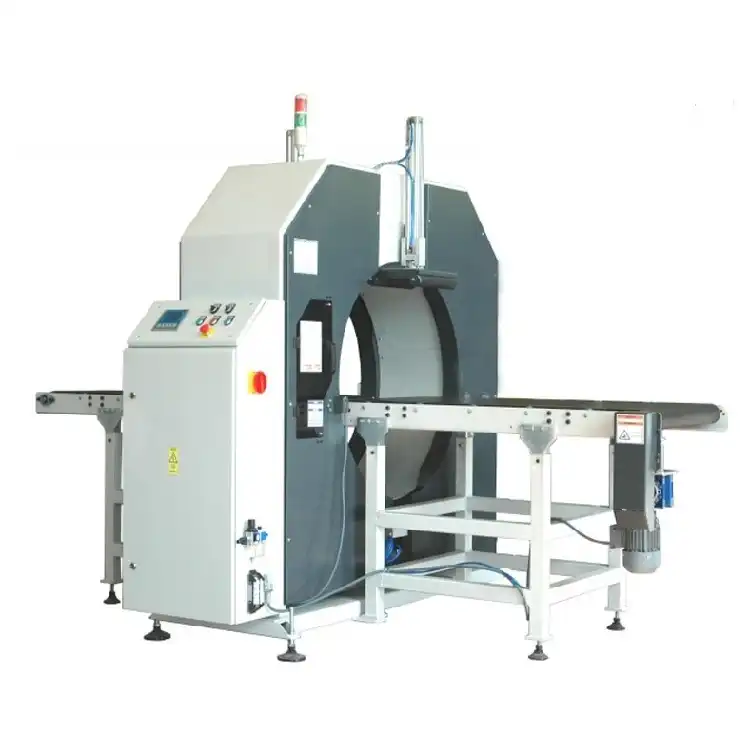

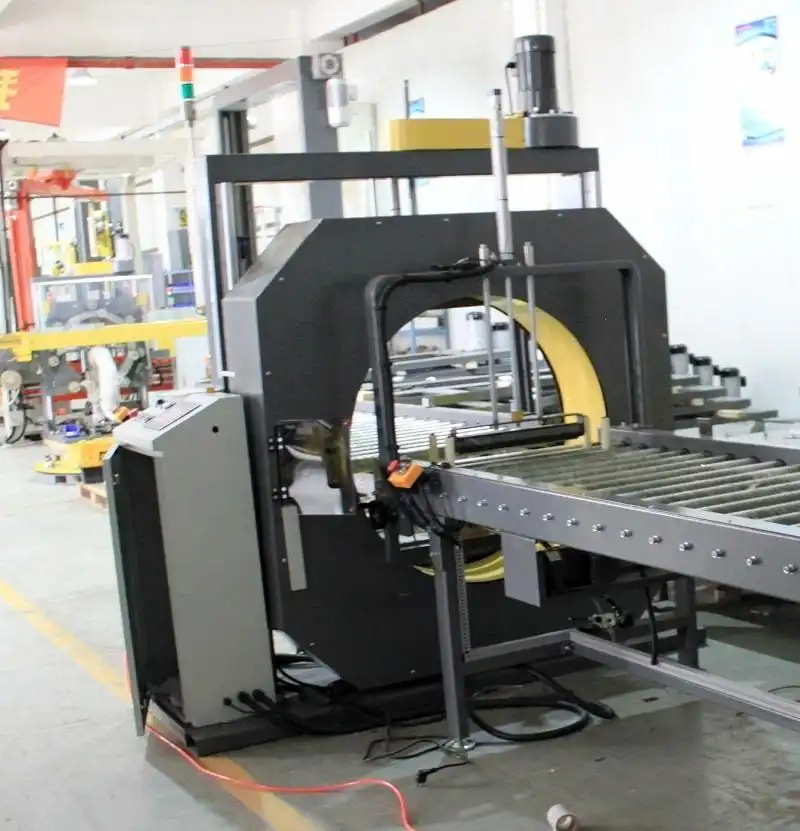

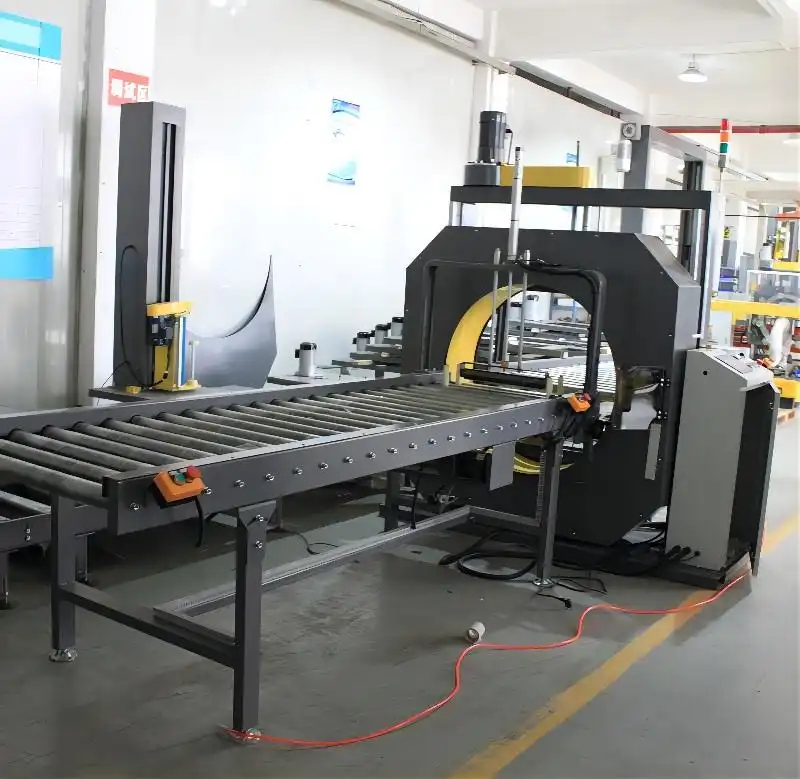

E600 Horizontal Stretch Wrapping Machine

The Spiral Wrapping Machine utilizes film packaging to protect loads, significantly reducing transportation costs by efficiently wrapping each load at the station. This packaging method ensures both quality and compliance with freight regulations. Options are available to integrate scales that enable simultaneous wrapping and weighing, facilitating data sharing with ERP systems.

The machine’s packing speed is adjustable, offering flexibility to handle different packaging requirements and adapt to potential future increases in production.

Main Wrapping Station Features:

  • Spiral ring facilitates film application around the package.
  • High-speed ring rotation ensures safety and stability due to its robust structure.
  • Adjustable friction between the driving wheels and the ring.
  • Ring speed can be regulated using inverters.
  • Soft start and stop motion of the ring.
  • Sensors automatically reset the wrapping position.
  • Adjustable packing material tension.
  • Compatible with a wide range of packing materials.
  • Protective shields cover the machinery structure and moving parts for safe operation.
  • Overlap of wrapping material is adjustable from 10%-90%.
  • Start and stop points of wrapping are adjustable.
  • Settings easily adjusted via the touchscreen interface.

Conveyor System:

  • Conveyor structure designed to prevent damage to the product surface.
  • Automated infeed and outfeed conveyor systems.
  • Conveyors powered by motors with gearboxes.
  • Speed of conveyors controlled by inverters.
  • Four position sensors monitor movement from infeed to outfeed.
  • Packing parameters are easily set via the Human Machine Interface (HMI).
  • Standard conveyor options include roller or PVC belt.

PLC & HMI Control System:

  • Flexible PLC and program control system seamlessly integrates with packing lines.
  • HMI interface for ease of operation.
  • Photocell sensors set and adjust the packing position.
  • Alerts and troubleshooting indicators automatically displayed on the touchscreen.
  • Separate control panel enhances ease of operation and maintenance.
  • Adjustable ring and conveyor speeds through the touchscreen.
  • User-friendly interface allows easy machine startup.
  • Wrapping head delay and end delay for partial wrapping are adjustable via touchscreen.
  • Reinforced wrapping at both the head and tail ends, adjustable through the touchscreen.
  • Machinery functions accessible via touchscreen and physical buttons.
  • Time settings for the pressing device’s action are programmable.

Press Down Device:

  • Manual adjustment of protective side devices to stabilize products during wrapping.
  • Top press device fitted with soft material to protect delicate surfaces like glass.
  • Two press down devices located at the in-feed and outlet conveyors.
  • Adjustable action timing of protective devices to suit different packaging needs and product dimensions.
  • Protective system adaptable to objects with varying frames, structures, and non-planar surfaces.

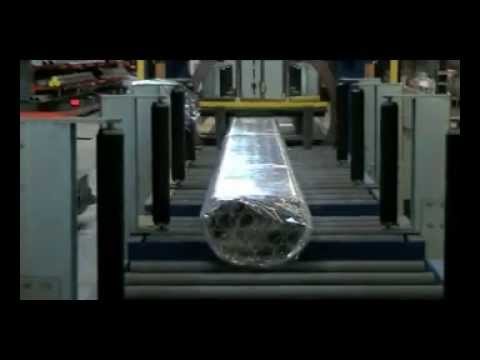

Pipe horizontal stretch wrapper packing machine

Object size

Bundle OD:200-600

Infeed conveyor

2000mm L×800mmW

Outfeed conveyor



LLDPE stretch film/ Paper/ Woven






50mm(Let me know, if you need another size)

Air Supply


Conveyor Speed


Ring speed


Machine size

App. L5200 x W1800 x H1800mm

Power output

about 4.5kw

Power voltage

AC 380v,50Hz,3Phase

Control Power voltage
