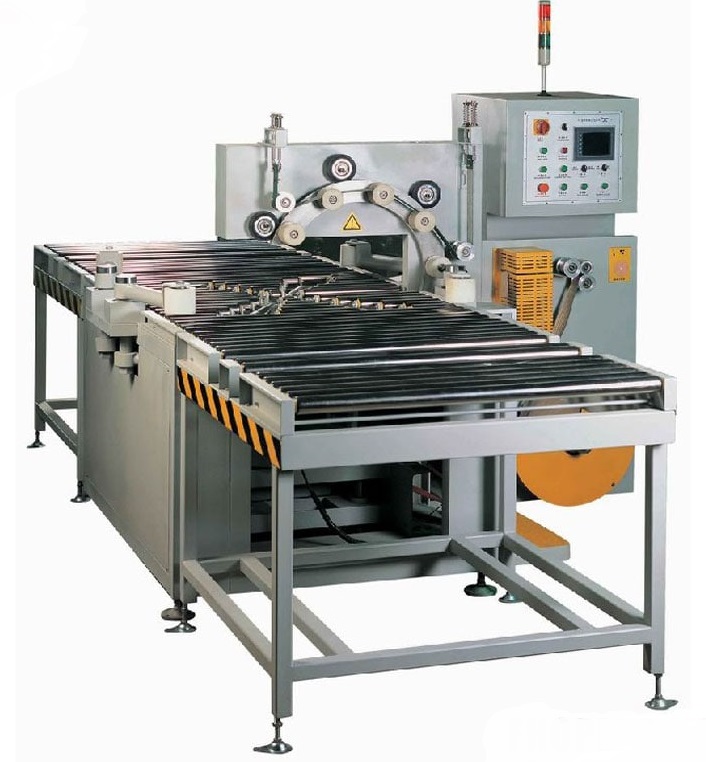

Bearing Packing Machine FPB-400

The Bearing Wrapping Machine FPB-400 is specifically engineered to meet the packaging needs of large bearings and axletrees. This machine’s high-efficiency design significantly enhances packing throughput while reducing labor costs. Its ability to create tight, secure packages minimizes the use of packaging materials. Additionally, the machine’s high stability ensures superior packaging quality, enhancing product protection during storage and transportation. This combination of features makes the FPB-400 an ideal solution for industries looking to optimize their packaging processes for heavy-duty components.

Category:

Features:

  • This series includes a model equipped with an automatic bearing wrapping machine.
  • The machine is designed with both infeed and outfeed conveyors to efficiently handle bearings.
  • The PLC can store up to six programs, easily accessible and selectable via a keypad.
  • Features automatic centralized positioning for precise bearing wrap packaging.
  • Offers flexibility in choosing from various packing materials.

Operation:

  1. Compatible with multiple packing materials including film, paper, and woven fabric.
  2. The working speed is adjustable through converters for optimal control.
  3. Simplified settings for outer diameter (OD), inner diameter (ID), width, and corrective parameters of the bearing, with no need for additional settings.
  4. Can be integrated seamlessly with the bearing production line to streamline the packing process.
  5. Packaging tension is adjustable to meet specific requirements.
  6. Includes a system for automatic material cutting.
Bearing packing machine and bearing wrapping machine by film+paper

Voltage (V/Hz)

AC 380/50( or your requirement)

Power (KW)

2.5

Bearing ID(mm)

300-800

Bearing OD(mm)

500-1200

Bearing width(mm)

100-400

Bearing Weight(Kg)

100-500

Packing material

Goffered paper/PE/Stretch film/knit belt/PVC

Ring speed(r/min)

30-70

Wrapping speed

30-50 sec/pce

Overlapping rate

20-90%
